[stunnel-users] Problem with sslv2 clients

Markus Borst M.Borst at hrz.tu-darmstadt.de
Fri Dec 9 15:37:33 CET 2011


we have a strange problem with newer stunnel versions (4.50 on windows),
compared to older ones (known to work is version 4.35). The problem
seems to be, that if a client sends a SSLv2 Helo message, the stunnel
server simply resets the TCP connection, without trying to negotioate

Setup: Stunnel is used top provide ssl/tls for imap, Hobbit is used to
monitor service availability. The Hobbit module to monitor imaps seems
to try SSLv2 first, but also supports newer versions (SSLv3 and TLSv1).
The ssl connection never gets established, stunnel sends a tcp RST,
hobbit never retries. We can force some hobbit modules to use TLSv1
exclusively, but not all of them. We fear that some older mailclients
will also have problems initiating a connection, so we keep stunnel 4.35
running for now.


fips = no
debug = 7
output = stunnel.log

accept  =
connect =
cert    = imap.xxx.company.yy.pem


2011.12.09 14:55:12 LOG5[6820:2144]: Service imaps accepted connection from xxx.yyy.zzz.105:45294
2011.12.09 14:55:12 LOG3[6820:2144]: SSL_accept: 1408F10B: error:1408F10B:SSL routines:SSL3_GET_RECORD:wrong version number
2011.12.09 14:55:12 LOG5[6820:2144]: Connection reset: 0 bytes sent to SSL, 0 bytes sent to socket
2011.12.09 14:55:12 LOG7[6820:2144]: Service imaps finished (0 left)
2011.12.09 14:55:12 LOG7[6820:2144]: str_stats: 0 block(s), 0 data byte(s), 0 control byte(s)

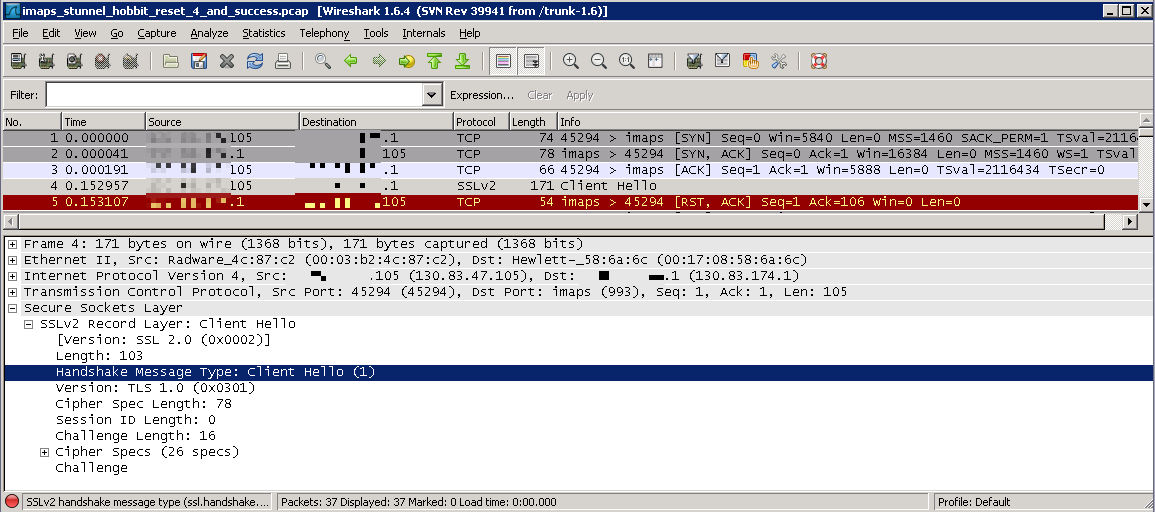

Wireshark Packet Trace (see attached image).

What's wrong here? Shouldn't client and server negotiate the methods
used? The client seems to offer TLS ("Version: TLS 1.0 ..."), but
instead of negotiating, the server simply closes the connection.

Markus Borst

-------------- next part --------------
A non-text attachment was scrubbed...
Name: stunnel_sslv2_RST.png
Type: image/png
Size: 30666 bytes
Desc: not available
URL: <http://www.stunnel.org/pipermail/stunnel-users/attachments/20111209/7c1dea9d/attachment.png>
